For fishing operations

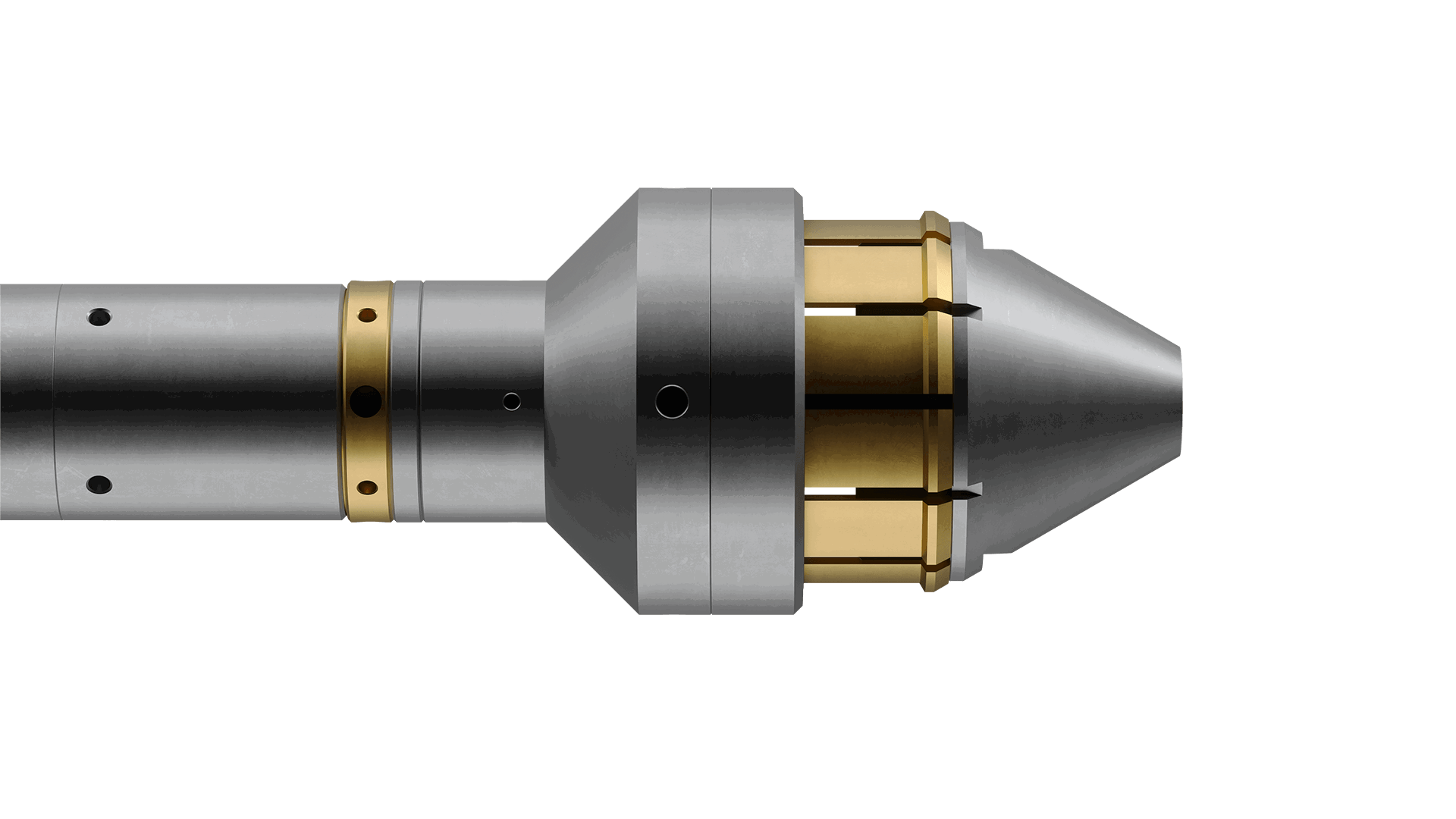

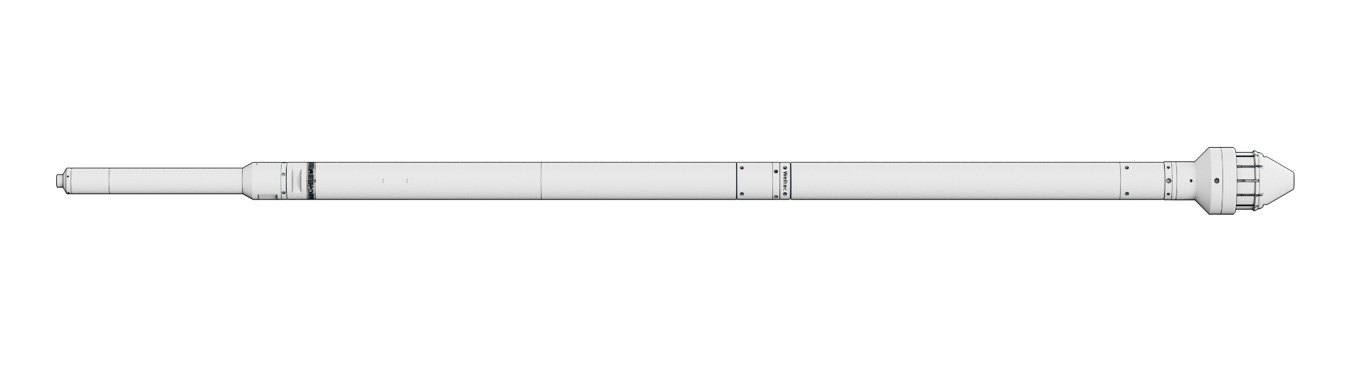

The Well Key® GS Pulling Tool is based on the Welltec‘s existing Well Key design. This tool is used for pulling plugs and fishing operations.
Its durable construction ensures reliable performance in tough downhole conditions, enhancing operational efficiency during well interventions.
Featured case
During well intervention operation, as part of a campaign covering reservoir analysis and surveys, a client installed a 4-1/2” retrievable bridge plug above a set of downhole gauges.
The Well Key GS Pulling Tool is activated to latch on to a fish neck mechanically. Instead of the key pads of the standard Well Key, a GS (which is essentially a fishing spear) will be active.
It is capable of latching when powered on and de-activated, i.e. releasing when powered off. This tool is reinforced to withstand high tensile force that can be required during fishing operations.
| Applications |
| Fishing operations |
| Pulling plugs |
| Pulling packers |
| Features |
| Allows transfer of high, controllable force |
| Passive fail-safe system |
| Rugged design allows for multiple repeated actuations |
| Bi-directional in same run |
| Ability to control position via surface read-out |
| Universal |
| NACE compliant |
| Benefits |
| Force applied directly to target |
| Fewer runs |
| No jarring required |
| Large range of ID’s accessible |
| Accurate depth control |
| Reduced risk of damage to well hardware |
| Operates on any e-line via DC |
| Specification range* | |
| Running OD of the tool | 3.5” →6” |
| Length | 12.4 ft → 13 ft |
| Weight in air | 82.5 lbs → 88.1 lbs |
| OD range of GS heads | 3.34” → 5.55” |
| Min latch ID | 2.52” → 4.7” |
| Max latch ID | 2.7” → 4.9” |
| Max. well pressure | 25,000 psi |
| Max. well temperature | 302°F |
| Safe pull tensile strength | 66,000 lbs |
| Compressive strength | 75,000 lbs |
| * | Dependent upon GS head configuration |
